Kits

Comprise: Transmitter Carrying Pouch/Strap Receiver with rapid-termination spring terminals 2 x Li-ion batteries Charger (110/240Vac) Aerial kit Manuals & Drawings

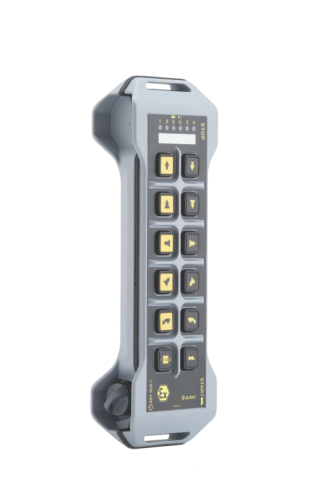

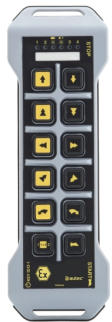

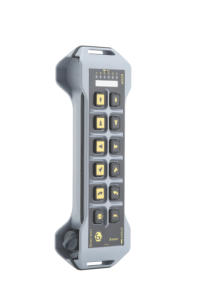

LKNeo EX Transmitters

Receivers

LKNeo8 EX

LKNeo12 EX

STANDARD FEATURES Zone 0/20 ATEX ATEX II 1G Ex ia IIC T5 Ga Tamb: -20/+50°C ATEX II 1D Ex ia IIIC T100°C Da Tamb: -20/+50°C IECEX Ex ia IIC T5 Ga Tamb: -20/+50°C Ex ia IIIC T100°C Da Tamb: -20/+50°C Zone 2/22 ATEX ATEX II 3G Ex ic IIC T5 Gc Tamb: -20/+50°C ATEX II 3D Ex ic IIIC T100°C Dc Tamb: -20/+50°C The transmitter may be used in the hazardous zone, with the receiver placed outside the zone. Alternatively, if the receiver must be in the hazardous zone, the ACRM15 may be mounted inside an explosion- proof enclosure. - STOP function PLd - 8 or 12 x 2-speed push-buttons - Automatic Frequency Search (434MHz band) - Alternatively, user-selected fixed frequency - Licence-free throughout Australia and New Zealand (LIPD/SRD Class Licensed) - Li-ion battery for long operating time ( >16hr ) - Battery can be changed in the hazardous area OPTIONS AVAILABLE - Additional Rotary switch Side pushbutton

TYPE ACRM15 40-264Vac Environmental protection to IP65 -20 O C to +70 O C operating 185 x 287 x 105 mm 15 x Relays + Safety + STOP 2 x Expansion slots for additional outputs and functions External aerial 4 x inputs for for use in logic or Data Feedback LED
