Kits
Comprise:
Transmitter with carry strap
Receiver with matching plug/socket
2 x batteries
Charger (specify 10-30Vdc or 110/240Vac)
Aerial (internal/external/extension as specified)
Manuals & Drawings
FJL Transmitter
Receivers
TYPE ARM - Analogue + CANOpen
8-30 VDC
IP65
-20
O
C to +70
O
C operating
202 x 230 x 96 mm
Expandable to 64 Digital, 12 Analogue (Either PWM or Voltage/Ratiometric)
Inputs available (for logic and feedback)
CAN / CANOpen + physical I/O
TYPE CRX Compact CANOpen
8-30 VDC
IP65
-25
O
C to +70
O
C operating
144 x 162 x 63 mm
1 x safe output (selectable as STOP or SAFETY) as push-pull pair
4 x FET outputs 2A
Other outputs over CAN / CANOpen
integrate
into
CAN
networks
- Ergonomic design specifically for 1-axis proportional paddles
- IP65 transmitters and receivers
- Rugged fibreglass-reinforced nylon housings
- Frequency-hopping spread-spectrum radios for high reliability, interference resistant links
- Completely automatic frequency management
- Electronic smart-key for identity-coding simplifies set-to-work of spare transmitter
- Fully electronic receivers with programmable logic capabilities
- CAN/CANOpen in all receivers
- Data feedback models available - via CAN or receiver inputs
- STOP protected to PLe / Cat 4 / SIL 3
- Unexpected motion from standstill protected to PLd / Cat 3 / SIL 2
- 11 hour run time on a single 4hr charge (9.5 hr for feedback versions)
- Speeds teachable from the transmitter
- Cable-control option (for when radio use is prohibited)

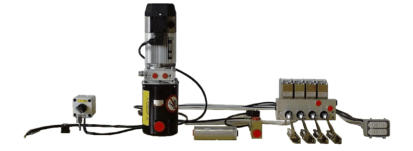

KSI Retrofit kit for Truck Loader Cranes
To retrofit a radio remote control onto a loader crane without
an electro-hydraulic valve bank previously required replacement of
the valve bank at considerable expense. The KSI kit allows the
ability to electrically control the existing valve bank using a low-
pressure hydraulic servo block that clamps onto the push rods
running side-to-side on the machine. The result is a safe,
responsive, and cost-effective solution for radio-controlling existing
cranes.
The pressure source for the system is either a low-pressure
DC pump with integral tank, or a pressure-reducing block that
sources oil from the main high-pressure system.
The kit comprises:
- An electro-hydraulic servo unit with 4-6 low-
pressure actuators with adjustable rod clamps
- Low pressure DC pump with integral oil tank OR
Counter-Pressure Reducing Block
- Oil Filter
- Optionally: valve cables, Remote/Local switch,
cabling to remote control receiver
TYPE ARX Compact
Analogue + Optional CANOpen
8-30 VDC
IP65
-20
O
C to +70
O
C operating
202 x 123 x 83 mm
Dual-channel safety output selectable as either STOP or Dump-Valve
6 x bi-directional PWM, 8 x Voltage/Ratiometric outputs
12 x Digital outputs
Expandable up to 28 digital outputs

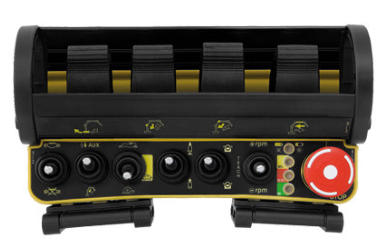

4 x 1-axis paddles
Sample Configurations

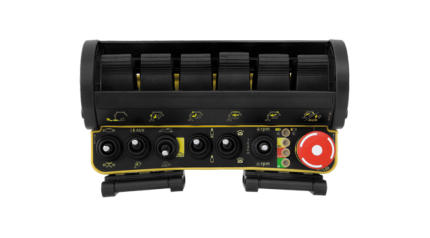

6 x 1-axis paddles
4 x 1-axis paddles

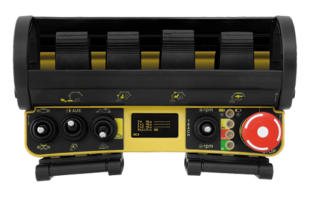

with Data Feedback screen
Locally designed and built
to your specifications
Kits
Comprise:
Transmitter with carry strap
Receiver with matching plug/socket
2 x batteries
Charger (specify 10-30Vdc or 110/240Vac)
Aerial (internal/external/extension as specified)
Manuals & Drawings
FJL Transmitter
Receivers
TYPE ARM - Analogue + CANOpen
8-30 VDC
IP65
-20
O
C to +70
O
C operating
202 x 230 x 96 mm
Expandable to 64 Digital, 12 Analogue (Either
PWM or Voltage/Ratiometric)
Inputs available (for logic and feedback)
CAN / CANOpen + physical I/O
TYPE CRX Compact CANOpen
8-30 VDC
IP65
-25
O
C to +70
O
C operating
144 x 162 x 63 mm
1 x safe output (selectable as STOP or SAFETY) as
push-pull pair
4 x FET outputs 2A
Other outputs over CAN / CANOpen
- Ergonomic design specifically for 1-axis proportional paddles
- IP65 transmitters and receivers
- Rugged fibreglass-reinforced nylon housings
- Frequency-hopping spread-spectrum radios for high
reliability, interference resistant links
- Completely automatic frequency management
- Electronic smart-key for identity-coding simplifies set-to-work
of spare transmitter
- Fully electronic receivers with programmable logic
capabilities
- CAN/CANOpen in all receivers
- Data feedback models available - via CAN or receiver inputs
- STOP protected to PLe / Cat 4 / SIL 3
- Unexpected motion from standstill protected to PLd / Cat 3 /
SIL 2
- 11 hour run time on a single 4hr charge (9.5 hr for feedback
versions)
- Speeds teachable from the transmitter
- Cable-control option (for when radio use is prohibited)

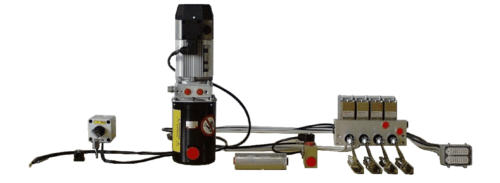

KSI Retrofit kit for Truck Loader Cranes
To retrofit a radio remote control onto a loader crane without an electro-
hydraulic valve bank previously required replacement of the valve bank at
considerable expense. The KSI kit allows the ability to electrically control the
existing valve bank using a low-pressure hydraulic servo block that clamps onto the
push rods running side-to-side on the machine. The result is a safe, responsive, and
cost-effective solution for radio-controlling existing cranes.
The pressure source for the system is either a low-pressure DC pump with
integral tank, or a pressure-reducing block that sources oil from the main high-
pressure system.
The kit comprises:
- An electro-hydraulic servo unit with 4-6 low-pressure actuators with
adjustable rod clamps
- Low pressure DC pump with integral oil tank OR Counter-Pressure
Reducing Block
- Oil Filter
- Optionally: valve cables, Remote/Local switch, cabling to remote
control receiver
TYPE ARX Compact
Analogue + Optional CANOpen
8-30 VDC
IP65
-20
O
C to +70
O
C operating
202 x 123 x 83 mm
Dual-channel safety output selectable as either
STOP or Dump-Valve
6 x bi-directional PWM, 8 x Voltage/Ratiometric
outputs
12 x Digital outputs
Expandable up to 28 digital outputs
4 x 1-axis paddles
Sample Configurations
6 x 1-axis paddles
4 x 1-axis paddles
with Data Feedback screen
Locally designed and built
to your specifications
