The Autec AIR series is optimised for industrial applications, including cranes of all types (overhead, portal, tower, jib, monorail, etc.) While proportional controls are
available, AIR systems are more often fitted with single-speed or multi-speed digital controls typical of such machines. A full range of transmitter sizes and styles covers all
applications the smallest to the largest, with a wide variety of joysticks, switches, displays, and other controls available. The 915MHz frequency-hopping spread-spectrum
(FHSS) radios or 433/915MHz dual band types operate reliably an interference-free in to the most arduous conditions with no need for any operator involvement.
Various receivers are available to operate from either AC or DC voltages, and include models with both relay and solid-state outputs. A number of different interface buses
are available as options:
- CanOpen/CAN 2.0b
- Profibus-DP
- Profinet-IO Supports PROFINET-RT and IRT 2.3
- Ethercat slave
- Etherent/IP
- Modbus RTU (via an Industry-IQ module)
- IP65 transmitters and receivers
- Rugged fibreglass-reinforced nylon housings
- Frequency-hopping spread-spectrum or dual-band 433/915MHz Listen-Before-Talk radios for high reliability, interference resistant links
- Completely automatic frequency management
- Electronic smart-key for identity-coding simplifies set-to-work of spare transmitter
- Various sizes and styles of receivers with programmable logic capabilities
- Data feedback models available - via bus or receiver inputs
- STOP protected up to PLe / SIL3 (model dependant)
Our engineers can custom-design your solution and build it for you in Australia, with rapid delivery times.

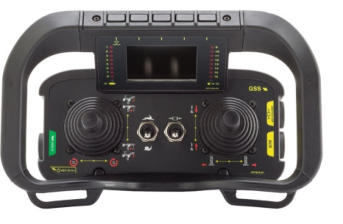

AJC- AIR series
- Up to 2 x 2-axis joysticks
- Widely used on Tower Cranes or other cranes requiring graphical display
- Custom layouts to your specification
Display Options
- 2 x user LEDs (standard)
- 2.8” colour LCD
- 32 LED array

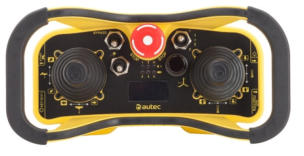

AJS- AIR series
- Up to 2 x 2-axis joysticks
- Custom layouts to your specification
Display Options
- 2 x user LEDs (standard)
- 1.54” OLED display (monochrome)
AJR- AIR series
- Up to 3x 2-axis joysticks
- Custom layouts to your specification
Display Options
- 2 x user LEDs (standard)
- 2.7” monochrome LCD
- 4.3” colour Codesys display

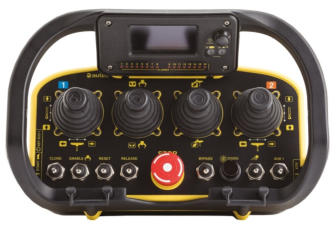

AJM- AIR series
- Up to 4 x 2-axis joysticks
- Custom layouts to your specification
Display Options
- 2 x user LEDs (standard)
- 2.7” monochrome LCD
- 4.3” colour Codesys display
The Autec AIR series is optimised for industrial applications, including cranes
of all types (overhead, portal, tower, jib, monorail, etc.) While proportional controls
are available, AIR systems are more often fitted with single-speed or multi-speed
digital controls typical of such machines. A full range of transmitter sizes and styles
covers all applications the smallest to the largest, with a wide variety of joysticks,
switches, displays, and other controls available. The 915MHz frequency-hopping
spread-spectrum (FHSS) radios or 433/915MHz dual band types operate reliably an
interference-free in to the most arduous conditions with no need for any operator
involvement.
Various receivers are available to operate from either AC or DC voltages,
and include models with both relay and solid-state outputs. A number of different
interface buses are available as options:
- CanOpen/CAN 2.0b
- Profibus-DP
- Profinet-IO Supports PROFINET-RT and IRT 2.3
- Ethercat slave
- Etherent/IP
- Modbus RTU (via an Industry-IQ module)
- IP65 transmitters and receivers
- Rugged fibreglass-reinforced nylon housings
- Frequency-hopping spread-spectrum or dual-band 433/915MHz Listen-
Before-Talk radios for high reliability, interference resistant links
- Completely automatic frequency management
- Electronic smart-key for identity-coding simplifies set-to-work of spare
transmitter
- Various sizes and styles of receivers with programmable logic capabilities
- Data feedback models available - via bus or receiver inputs
- STOP protected up to PLe / SIL3 (model dependant)
Our engineers can custom-design your solution and build it for you in Australia, with
rapid delivery times.
AJC- AIR series
- Up to 2 x 2-axis joysticks
- Widely used on Tower Cranes or
other cranes requiring graphical display
- Custom layouts to your
specification
Display Options
- 2 x user LEDs (standard)
- 2.8” colour LCD
- 32 LED array
AJS- AIR series
- Up to 2 x 2-axis joysticks
- Custom layouts to your specification
Display Options
- 2 x user LEDs (standard)
- 1.54” OLED display (monochrome)
AJR- AIR series
- Up to 3x 2-axis joysticks
- Custom layouts to your specification
Display Options
- 2 x user LEDs (standard)
- 2.7” monochrome LCD
- 4.3” colour Codesys display
AJM- AIR series
- Up to 4 x 2-axis joysticks
- Custom layouts to your specification
Display Options
- 2 x user LEDs (standard)
- 2.7” monochrome LCD
- 4.3” colour Codesys display
